TC500 Controller SurRon Light Bee kit

846,48 $

Price not including VAT

From our webshop to your doorstep in 3-5 days!

___________________

The only aftermarket controller pre-configured for the SurRon Light Bee/Segway X260 e-bikes. Quick and easy installation and intuitive setup through the mobile App.

Find out more…

Out of stock

Categories: ,

Description

INCLUDED IN THE PACKAGE:

-1x TC500 Controller

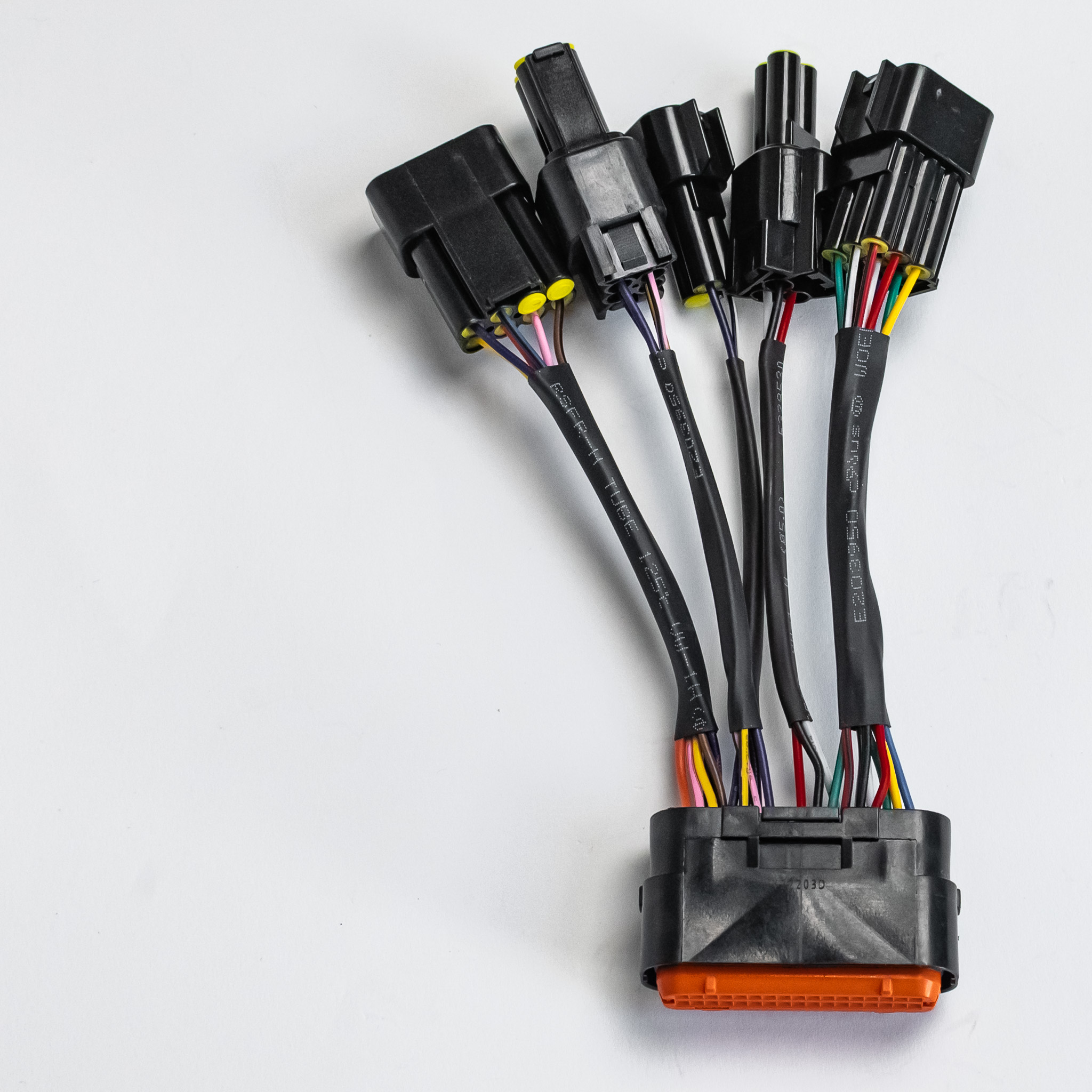

-1x wire harness
-1x plastic shield

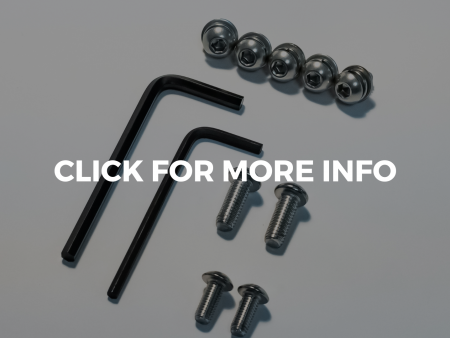

-screws and tools needed for installation
-4x stickers
-1x pack of silicone grease
-short instructions

SPECIFICATIONS:

-Field-oriented control (FOC)
-Supported batteries: up to 72V nominal 20S (84V fully charged)
-Max Power: 25kW*
-Sensored (HALL Encoder) and sensorless control
-Max Battery Current: 350 A*

*In combination with the stock SurRon e-motor, the max power is 17 kW. In combination with the TM25 motor the max power is 23 kW.

-Max phase current: 500 A
-Efficiency up to 99%
-Working temperature: from -15 to 75 C°
-Bluetooth communication
-Pre-calibrated: No additional steps required
-Overcurrent, overvoltage, undervoltage and overtemperature protection
-Communication with stock BMS
-Different regenerative braking and throttle modes
-Weight: 1kg
-Features: Mobile App (IOS & Android), stock SurRon display
-Protection class: IP67*
-Regular firmware updates

*While Torp controllers are rated IP67, making them highly water-resistant, the wiring harnesses for both the controller and bike are not waterproof. In case your bike is exposed to water in any way, it is mandatory to apply dielectric grease inside all connectors.

Warranty Policy

Installation instructions

Modifying a stock electric vehicle can result in the vehicle becoming non-compliant with your local road safety regulations. It’s essential to consult with experts or authorities before modifying your vehicle to ensure adherence to road legality.

Additional information

Weight 1,34 kg
Dimensions 140 × 100 × 40 mm
