NEW! TC500 2.X Controller kit for Talaria MX3 / MX4 / Sting R

Name: NEW! TC500 2.X Controller kit for Talaria MX3 / MX4 / Sting R
SKU: CTR-TC500-05
Availability: InStock

989,83 $

Price not including VAT / Import Fees

From our webshop to your doorstep in 3-5 days!

________________

Boost the power of your Talaria MX3 / MX4 with the TC500 controller.

The new generation TC500 2.X controller comes with integrated launch and lift assist hardware enabling advanced stability control for perfect wheelies and enhanced riding dynamics (Available via App update by Mid-February 2026), while automotive-standard throttle support and over-current protection safeguard performance. Next-generation components keep it resilient and reliable ride after ride.

The max power with the stock battery on Talaria MX4 is 11,5 kW and with MX3 is 8 kW.
Compatible with the stock Talaria and aftermarket (60 V , 72 V and 80V) batteries. Easy to install and even easier to adjust according to your preferences using the Torp App!

With Torp controllers, all stock Talaria features will be preserved (stock Talaria Display, kick-stand sensor, crash sensor, power mode button, and brake switch) except for the start button.

Learn more…

In stock

SKU: CTR-TC500-05 Category: Talaria mods

Description
Additional information

Description

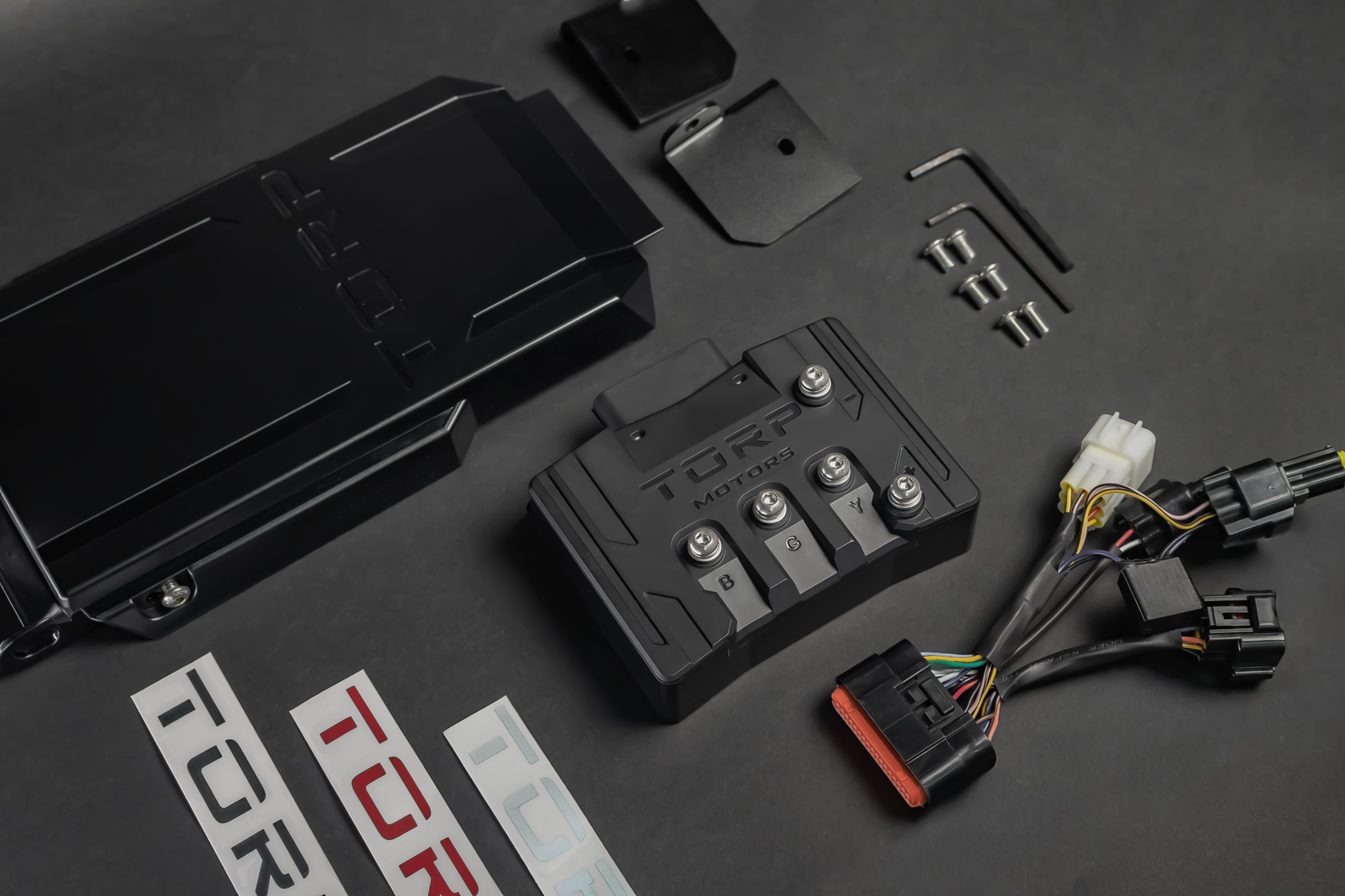

INCLUDED IN THE PACKAGE:

-1x TC500 Controller (version 2.X)
-1x wire harness
-1x plastic shield
-screws and tools needed for installation
-4x stickers
-1x pack of silicone grease
-short instructions

SPECIFICATIONS:

-Field-oriented control (FOC)
-Supported batteries: from stock 60V up to 80V nominal 22S (92,4V fully charged)
-Max Power: 25kW*
-Sensored (HALL Encoder) and sensorless control
-Max Battery Current: 350 A

*In combination with the stock Talaria MX3 / MX4 e-motor and 72V aftermarket battery, the max power is 18 kW.

Important: Currently the controller CAN NOT communicate with the stock Talaria battery produced by SCUD. Please read before purchasing. Other controller functionalities are intact.

-Max phase current: 500 A
-Efficiency up to 99%
-Working temperature: from -15 to 75 C°
-Bluetooth communication
-Pre-calibrated: No additional steps required
-Overcurrent, overvoltage, undervoltage and overtemperature protection
-Communication with stock BMS
-Different regenerative braking and throttle modes
-Weight: 1kg
-Features: Mobile App (IOS & Android), stock Talaria display
-Protection class: IP67*
-Regular firmware updates

*While Torp controllers are rated IP67, making them highly water-resistant, the wiring harnesses for both the controller and bike are not waterproof. In case your bike is exposed to water in any way, it is mandatory to apply dielectric grease inside all connectors. The warranty does not cover malfunction or damage arising from the use of the motor controllers in activities where frequent or extended submersion in water is expected, such as riding in streams, rivers, or flooded areas. Over time, seals and components may degrade, reducing the water-resistant effectiveness of the product. Damage resulting from this natural wear and tear is not covered by the 2-year warranty.

Warranty policy

User Manual

Modifying a stock electric vehicle can result in the vehicle becoming non-compliant with your local road safety regulations. It’s essential to consult with experts or authorities before modifying your vehicle to ensure adherence to road legality.
